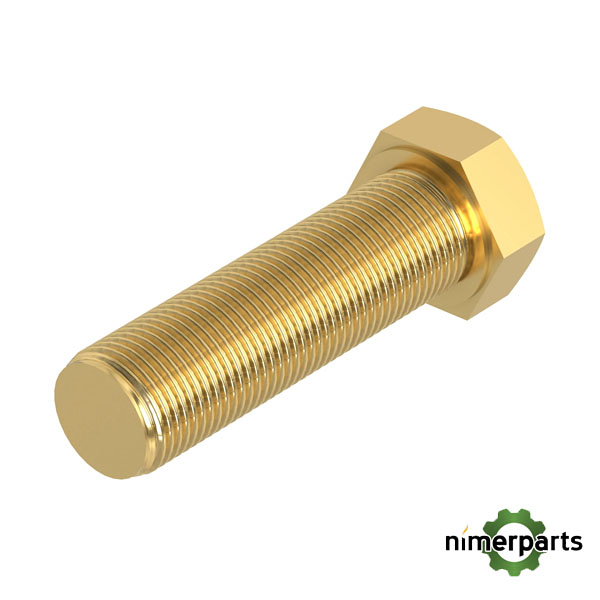

19h3483 - 3/8 "x 1 1/8" John Deere screw

19H3483

Screw 3 /8x29 John Deere screw:

These are the same parts that were used to try and build Your machine. They guarantee a perfect adjustment and the maximum performance in all phases of the life cycle of their machines.
- The highest longevity standards

replaces: 19h2552

ico-soporte Real-time technical assistance

ico-stock More than 50 years at your service

ico-pago-seguro Secure payment, trusted sales

Características

diameter

9, 525 mm

thread

UNC2a

length

28, 575 mm

thread length

24, 613 mm

width between plans

14, 275 mm

head height

6, 172 mm

Material Degree a17f

- This spare is valid for the following John Deere models:
317, 1641, 2040, 2141, 2251, 2351, 2541, 2651, 2941, 2951, 2955, 3010 , 3040, 3050, 3140, 3141, 3155, 3350, 3351, 3641, 3650, 3651, 4050, 4250, 4300, 4400, 4450, 4650, 4850, 5010, 5600, 5700, 6100, 6200, 6300, 6400, 6500 , 6506, 6600, 6800, 7500, 8430, 8440, 8450, 8630, 8640, 8650, 2251N, 350b, 3640s, 401d, 450b, JD700, JD760
